2 to 4 GHz Low Noise Amplifier with 10dBm Output Power and 25 dB Gain

Name: 2 to 4 GHz Low Noise Amplifier with 10dBm Output Power and 25 dB Gain
Brand: ZR Hi-tech
Price: 1 USD

Brand Name : ZR Hi-tech

Model Number : LT-LA-020040-G25P10

Place of Origin : CHINA

MOQ : 1

Payment Terms : D/A,D/P,T/T

Delivery Time : 4 weeks

Packaging Details : carton packing

Contact Now

2 to 4 GHz LT-LA Series Power Amplifier

Quick Detail:

· Aluminum Housing

· Customizable Frequency

· -55℃~+85℃ Operating Temperature

· Small Signal Gain 25dB

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

The LT-LA-020040-G25P10 from ZR is a RF Amplifier with Frequency 2 to 4 GHz, Small Signal Gain 25 dB, Gain Flatness ±1.5 dB, Output Power 10dBm, Input Power 10 dBm. Tags: Power Amplifier. More details for LT-LA-020040-G25P10 can be seen below.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

Items	Specification	Conditions
Part Number	LT-LA-020040-G25P10
Configuration	Module with Connector
Frequency Range	2 to 4 GHz
Small Signal Gain	25 dB
Gain Flatness	±1.5 dB
Output Power	10 dBm
Input Power	10 dBm
VSWR	2.0:1
Power Supply	+12V / 150 mA
Operating Temperature	-55 to +85 ℃
Dimension	34.4x16.8x8.1 mm
Note: for custom specs, please contact us directly.

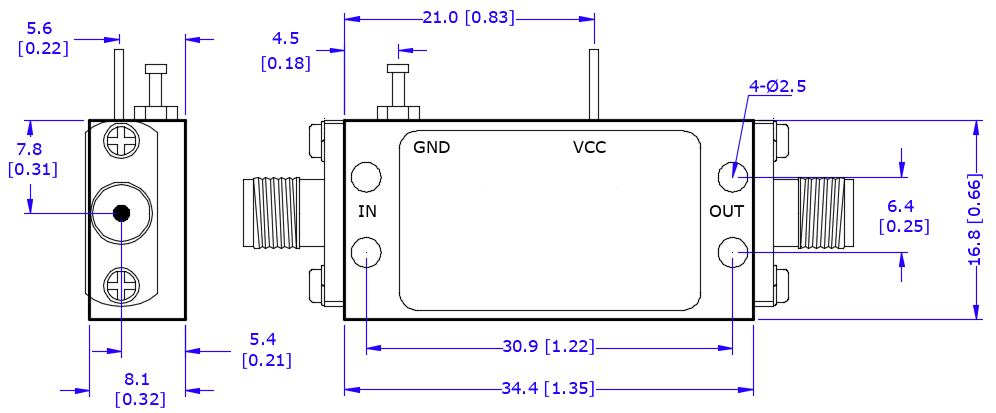

Outline Drawing (Unit: mm):
