Brand Name : ZR Hi-tech
Model Number : LT-PD-8S-010265
Place of Origin : CHINA
MOQ : 1
Payment Terms : D/A,D/P,T/T
Delivery Time : 4 weeks
Packaging Details : carton packing
1 to 26.5 GHz 8-Way Power Divider
Quick Detail:
· 8-Way Power Divider
· Stripline Design
· -55℃~+85℃ operating temperature
· 1 to 26.5 GHz Frequency Range
· Max Power 20 Watt
· Insertion Loss < 6.2 dB
· Isolation > 15 dB
· CE, RoHS, REACH compliant
· 1 Year Warranty
Description:
The LT-PD-8S-010265 from ZR is a 8-way power divider that operates from 1 to 26.5 GHz and can handle up to 20 Watt (CW) with 6.2 dB max insertion loss and 15 dB min isolation,The package interface uses SMA-Female connectors and is REACH and RoHS compliant.More details for LT-PD-8S-010265 can be seen below.
Specifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)
Items | Specification | Conditions |
Part Number | LT-PD-8S-010265 |
|
Frequency Range | 1 to 26.5 GHz |
|
Impedance | 50 Ohms |
|
Input VSWR | 1.8:1 Max. |
|
Output VSWR | 1.8:1 Max. |
|
Insertion Loss | 6.2 dB Max. | Excluding Nominal Splitter Loss 3.0dB |
Isolation | 15 dB Min. |
|
Amplitude Balance | 1.4 dB Max. |
|
Phase Balance | 16 Degrees Max. |
|
Input Power | 20 kW |
|
Connectors | SMA-Female |
|
Dimension | 110x120x12.7 mm |
|
Note: for custom specs, please contact us directly. |

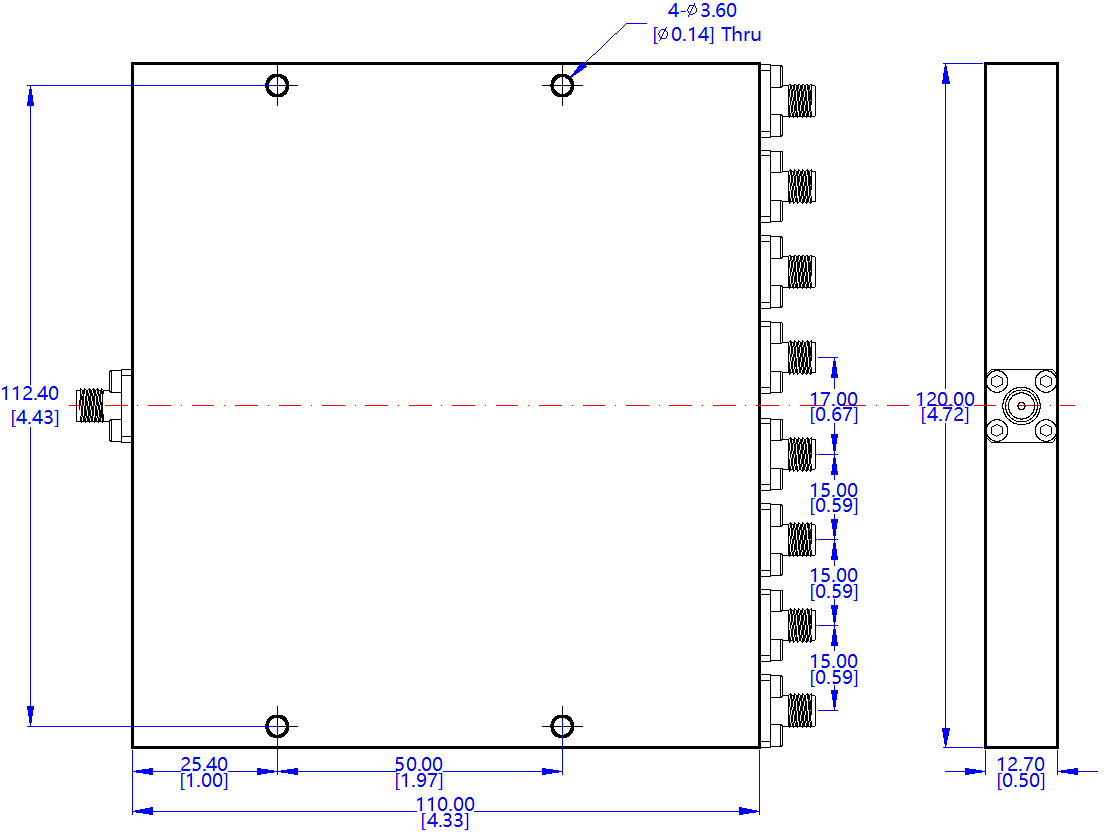

Outline Drawing (Unit: mm):
![]() |
1 to 26.5 GHz 20 Watt LT-PD Series 8-Way Power Divider Images |
